Guide - Spoiler painting and fitting
« on: February 10, 2009, 01:51:55 PM »
D17cro purchased a genuine spoiler with an unopened fitting kit from Ebay. Only problem was it was finished in met black.

The following pictures are the stages of preperation and painting. Fitting guide to follow.

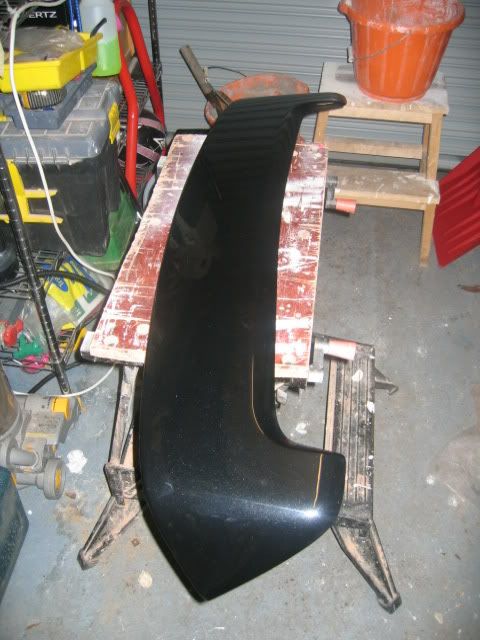

The spoiler was placed on a work bench prior to flatting with 1200 wet and dry paper.



Once flatted completely I wiped it down with paper towel to make sure no traces of water of residue was left.

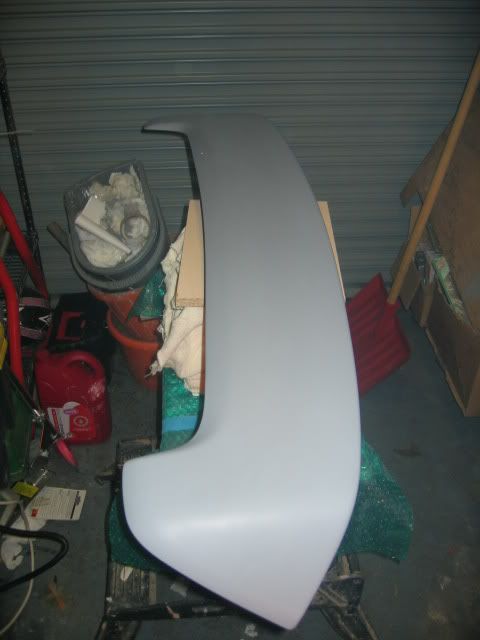

The work bench was then covered to reduce the risk of contamination/dust blowing about and then the spoiler was primed with three coats of plastic primer. One dust coat and two full coats.

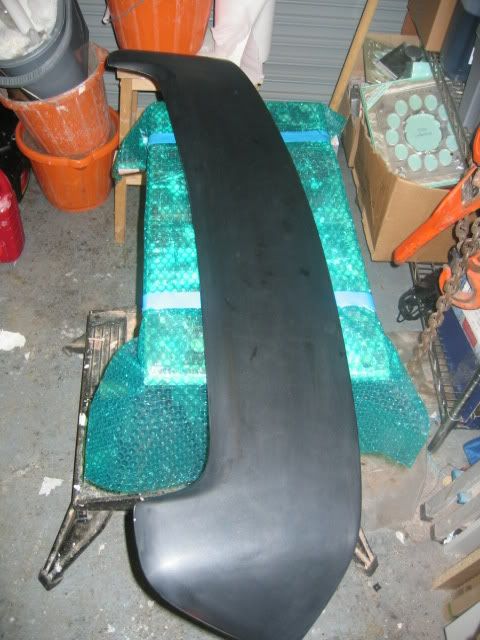

This was allowed to dry and then flatted again using the wet and dry paper. Dried again and then wiped over.

Winning Blue base cost was applied in four stages. Dust coat, and then three build coats.





Once dry I applied two pack laquer in 4 stages again.

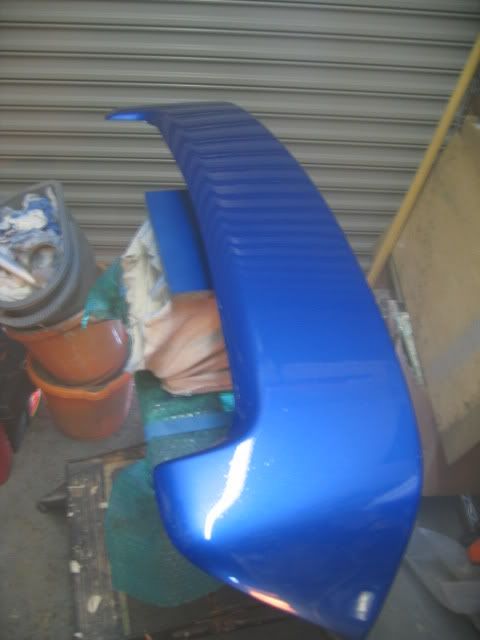

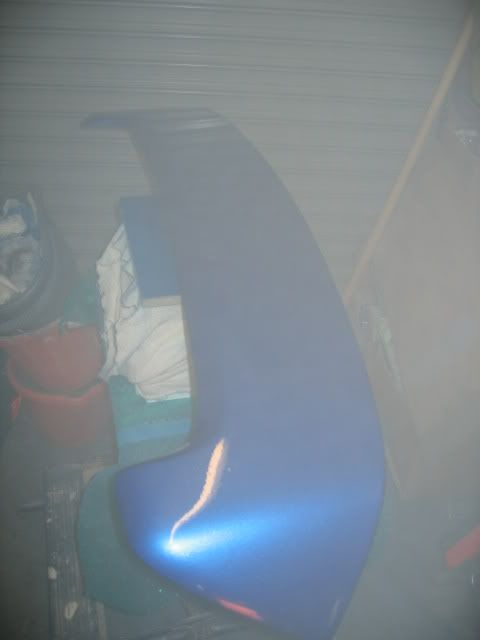

I allowed the clear coat to dry and brought the spoiler into the house to harden off.

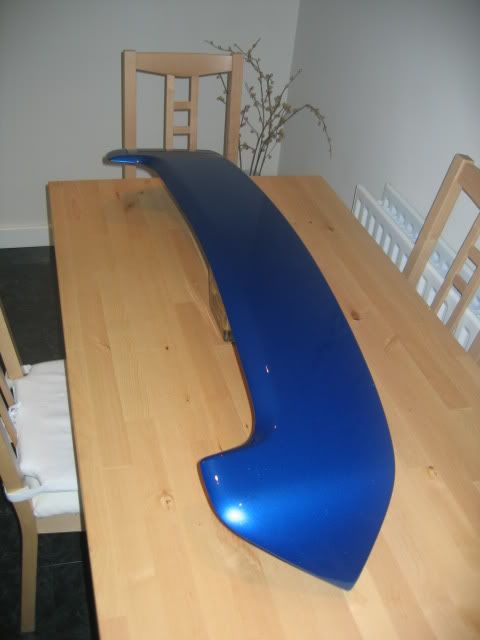

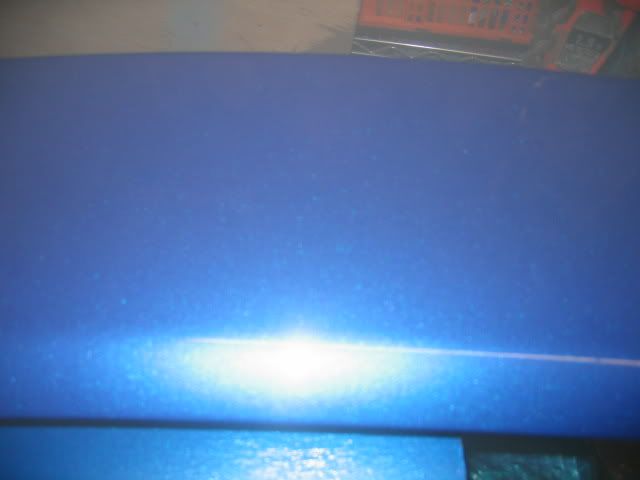

I noticed a couple of contaminates in the laquer so once the paint is hard I have flat and polished the whole unit.

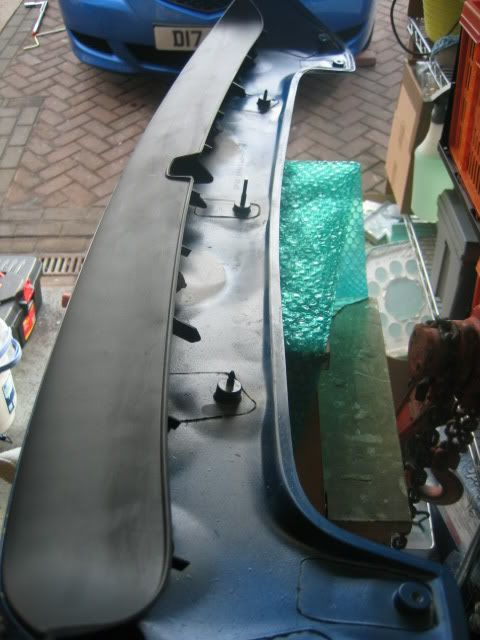

Once polished I assembled the plastic trim on the underside, this is secured by screws, there were foam pads and edging tape to apply to prevent scuffing the original paint once fitted.



The trim and high level brake light was removes by simply unclipping then the tailgate was closed to allow the marking of the centre hole.

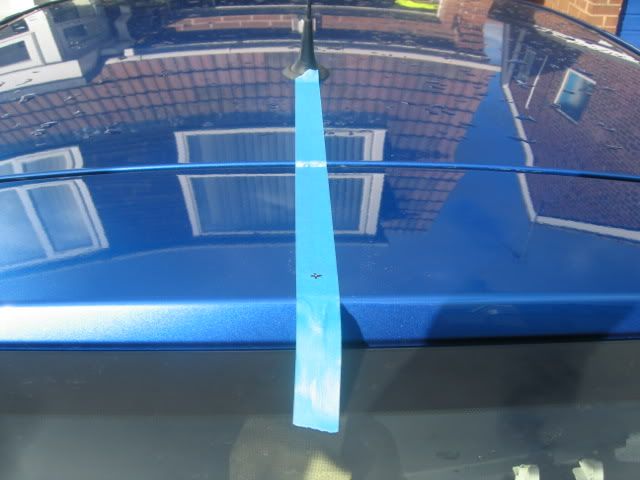

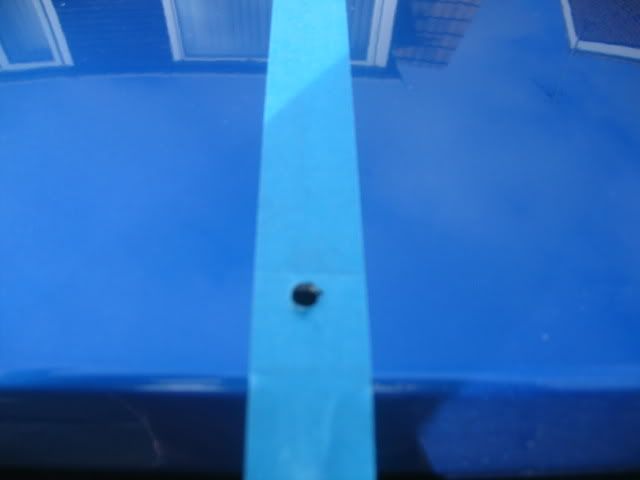

I applied masking tape and marked the centre line 155mm from the leading edge.



Using an automatic centre punch I popped a mark on the spot and drilled a pilot hole then stepped up to the 6mm hole that is required.

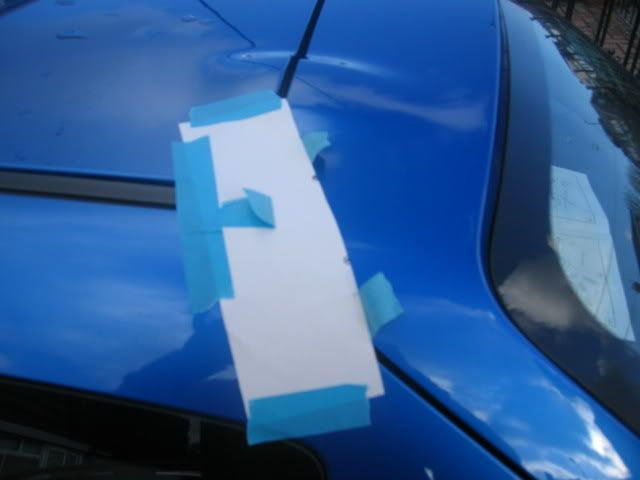

Applied the side templates for the four 6mm holes (2 either side)

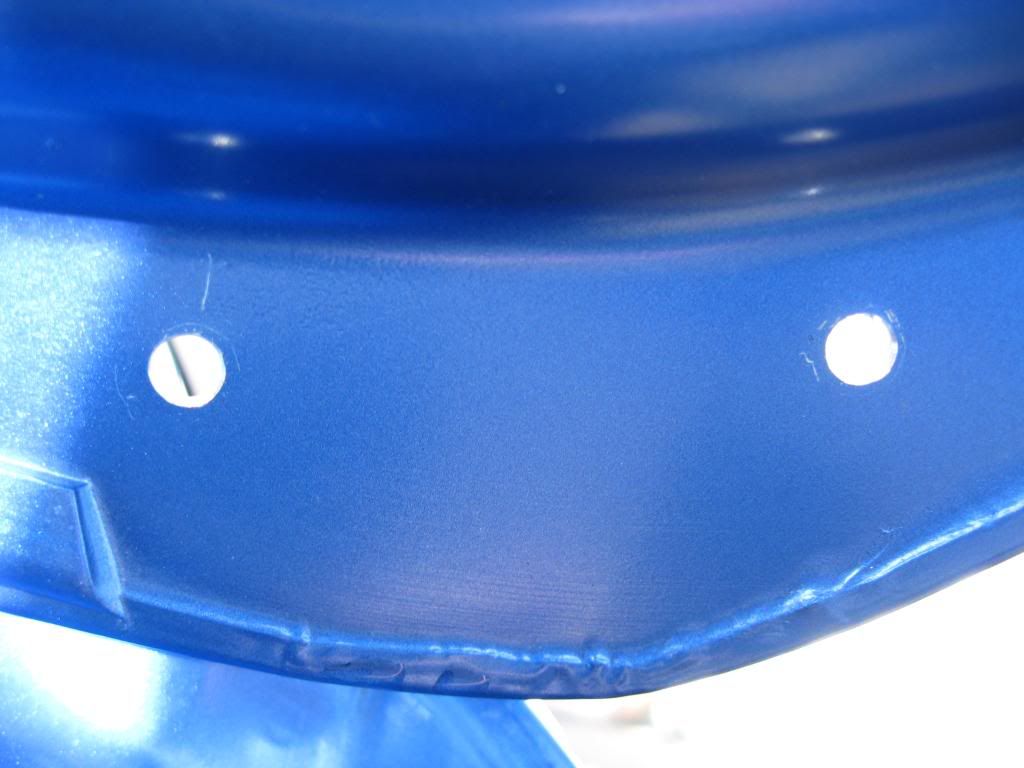

Drilled from the outside and then cleaned the swarf off on the inside using a larger drill bit.





Then all the holes were painted with a touch up brush to protect the bare metal from corrosion.

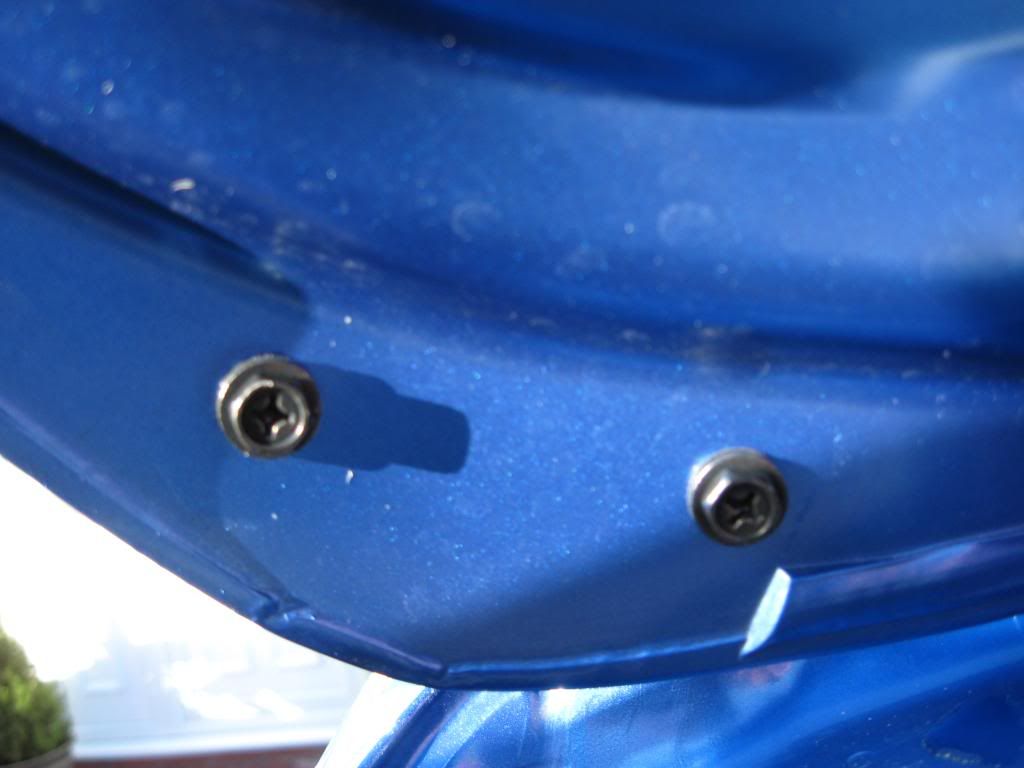

The spoiler was placed in position and tightened up.

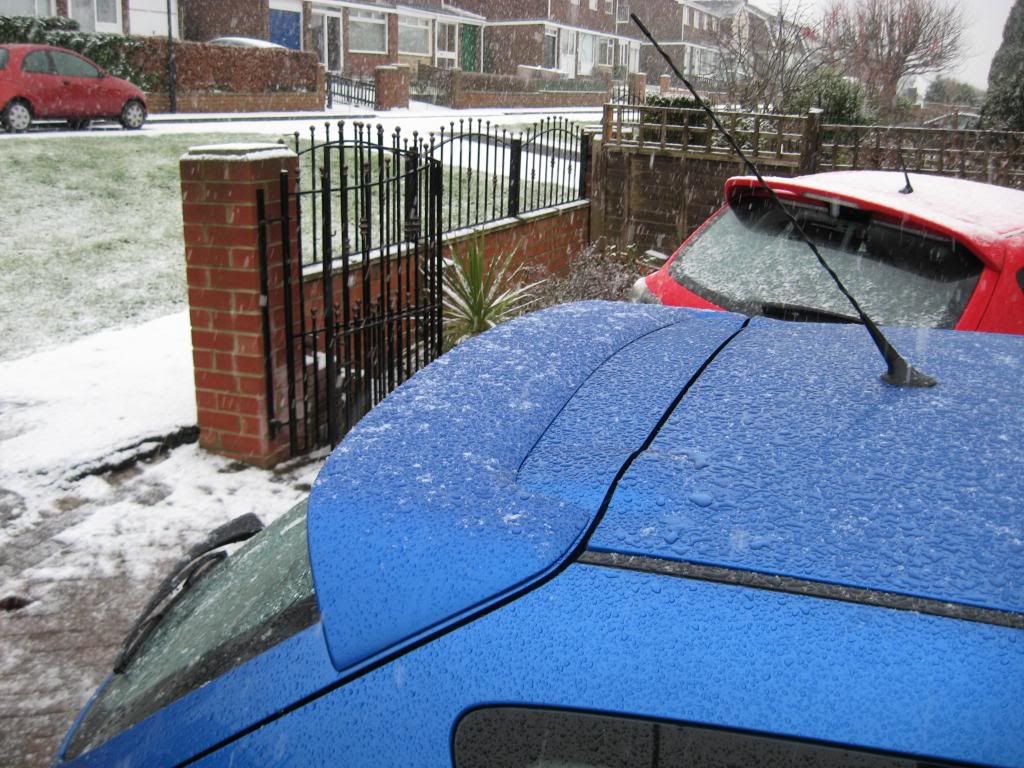

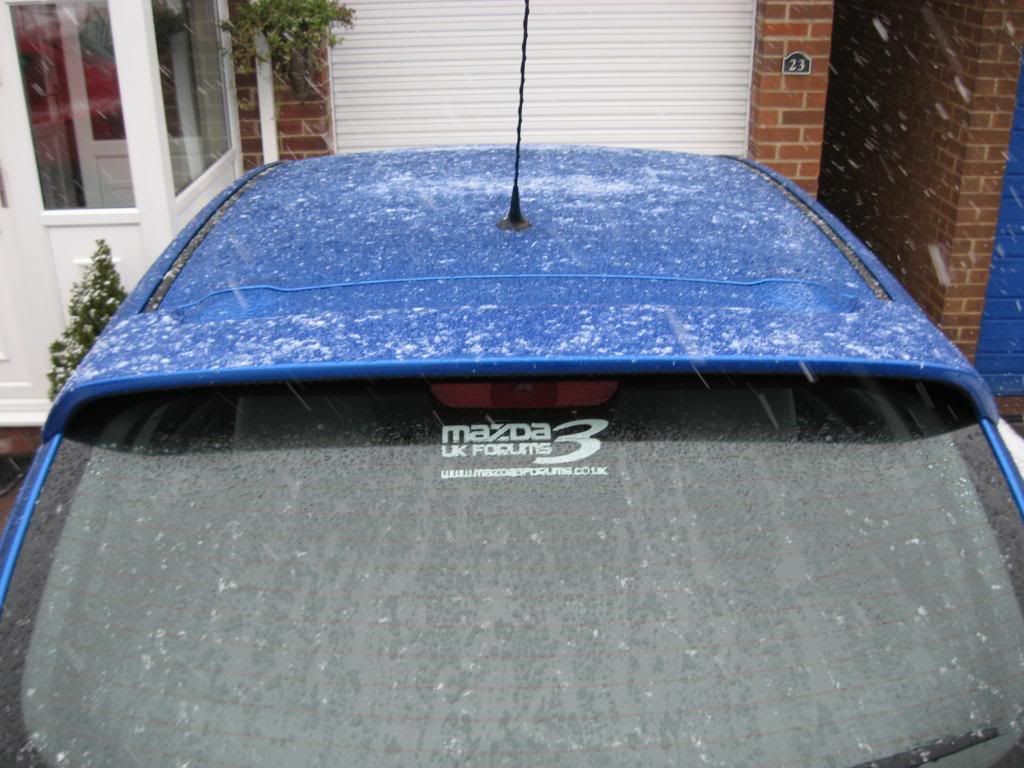

The finished job, in the snow the day after!
